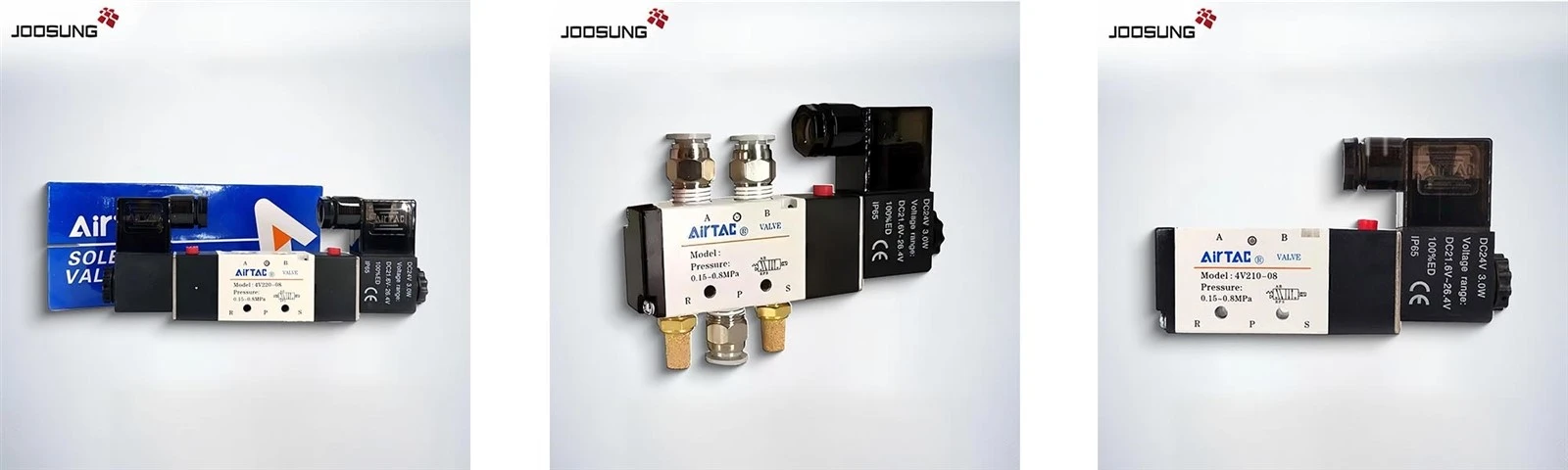

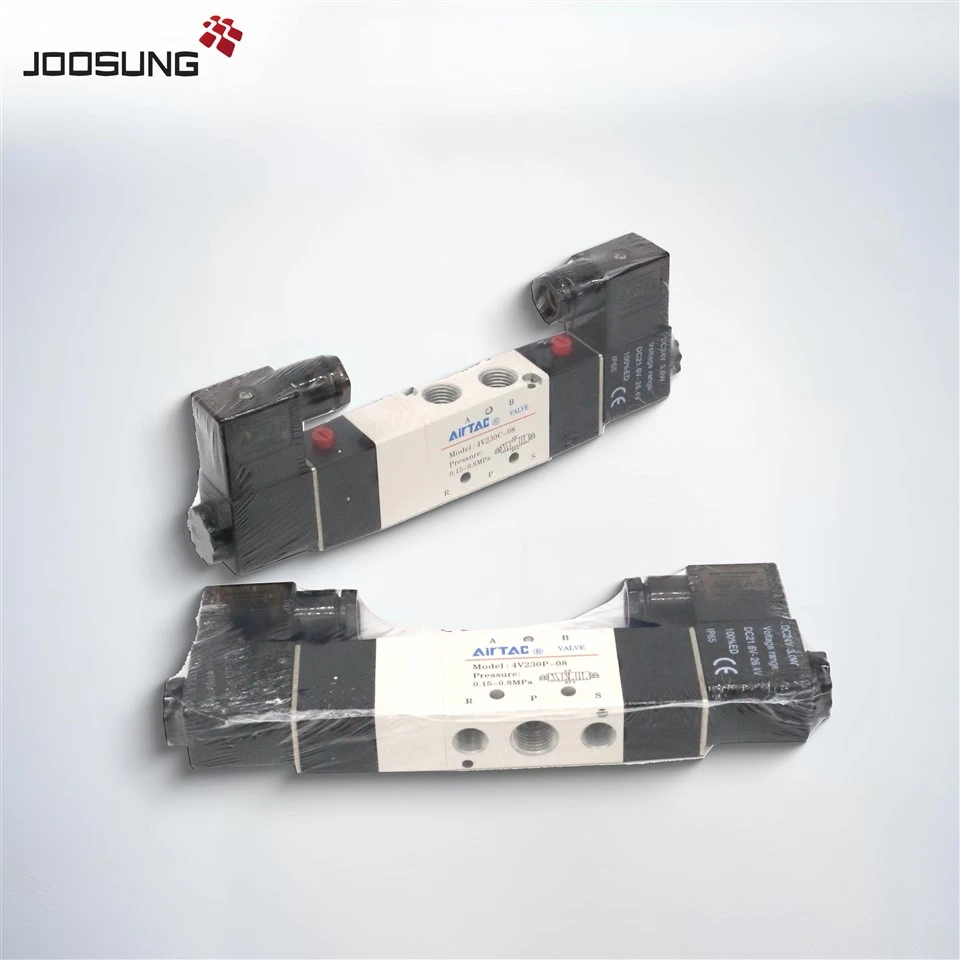

AIRTAC 4V200 seri solenoid valvew be ni dilan cogo nɔgɔman ye min be se ka yɛlɛma, o b’a to u be se ka baara kɛ ni farikolo yɔrɔw ye minw be yɔrɔw ta ka ɲɛ ani ka fiɲɛ kɔlɔsili baara kɛ cogo ɲuman na. Komi an ye Sinuwaw ka pneumatique dilanbaga ye, an be AIRTAC 4V200 valve sɔbɛw di ni sɔngɔw ye minw be se ka ɲɔgɔn dan ani minw be se ka sɔrɔ i ka baarakɛyɔrɔw n’i ka baarakɛminanw na.
|
4V komandi cogo .200 Seriw ka pneumatique solenoid Valve |
||||||
|
4 V 2 10 08 A ¨ ¨ |
||||||
|
① ② ③ ④ ⑤ ⑥ ⑦ |
||||||
|
†Mudiya |
②Code |
1Valve sugu |
‐Sariyamaya |
⑤Volti |
⑥Elektirisi donyɔrɔ |
1 Kalan sugu . |
|
4V: solenodi kuru (5/2,5/3 sira) |
2:200 Seerew |
10: Solenoid 5/2 . |
06:1/8" 08:1/4" |
A:AC220V B:DC24V C:AC110V E:AC24V F:DC12V |
Blank:Sariya I:ka |
Blank:PT G:G T:PT |
|
20: Solenoid min be se ka kɛ 5/2 ye . |
||||||
|
30C: Solenoid 5/3 sira datugunin . |
||||||
|
30E: Solenoid min be se ka kɛ 5/3 ye . nɔgɔkun cɛmancɛ |
||||||
|
30P: Solenoid 5/3 sira degunyɔrɔ . |
||||||
Aw ka se ka jɛnɲɔgɔnya kɛ n’an ye walisa ka fɛɛn dɔw sɔrɔ minw be se ka mɔgɔw dɛmɛ ka koow kɛ cogo ɲuman na, ani u be se ka kɛ sababu ye ka AIRTAC 4V200 ka solenoid valvew sɔrɔ walisa k’i ka ɔridinatɛri baara kɛ ka ɲɛ.
4V200 Sariw ka fɛnɲɛnamafagalan .Paramɛtiri fɛɛrɛmanw
|
4V200SeriwSɔngɔ solenoid Valve ka fɛnw . |
||||
|
Mɔdɛli |
4V210-06 |
4V230C-06 |
4V210-08 |
4V230C-08 |
|
Ji |
Fiɲɛ (ka filtɛri kɛ ni 40μm filɛrifɛn ye) |
|||
|
wale |
Kɔnɔna kurun kɔnɔ walima pilɔti kɛnɛma . |
|||
|
Port size [Note1] |
=Out=Sɛbɛn{{2}/8" |
=OOut=1/4"Sɛbɛn=1/8" |
||
|
A bonya |
14.0mm2 |
12.0mm2 |
16.0mm2 |
12.0mm2 |
|
Valve sugu |
5 port 2 lɔyɔrɔ |
5 port 3 lɔyɔrɔ |
5 port 2 lɔyɔrɔ |
5 port 3 lɔyɔrɔ |
|
ka degun baara |
0.15~0.8MPa(21~114pssi) |
|||
|
ka degun baara |
1.2MPa(175psi) |
|||
|
Gwanniyahakɛ |
-20~70 degere |
|||
|
Farikoloɲanagwɛko |
Aliminiyɔmu nɛgɛ |
|||
|
Lubrucation [Kɔlɔ2] |
A man kan |
|||
|
Max.frequency [Note3] |
5 cycle/sec |
3 cycle/sec |
5 cycle/sec |
3 cycle/sec |
|
Giri (g) |
4V210-06:220 |
360 |
4V210-08:220 |
360 |
|
[Note1]PT juru,G juru ani NPT juru be sɔrɔ. |
||||
|
[Note2] Ni fiɲɛ tulu be baara kɛ ka ban, a be to ka kɛ ni fɛɛrɛ kelen ye walisa ka valve ka ɲɛnamaya kɛcogo fisaya . |
||||
|
[Note3]Sari hakɛ min ka ca, o ye no- doni ye . |
||||
